Concrete underground tunnel

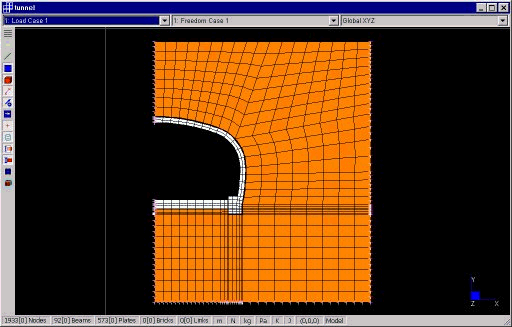

Concrete tunnel analysed as a plane strain model. Contact elements are used to model the interface between the soil and the concrete to allow separation (such as uplift).

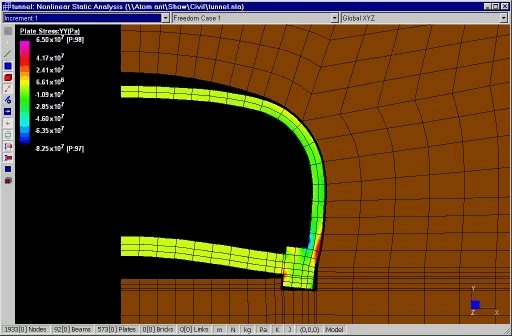

The deformed plot shows the regions of the tunnel that have separated away from the soil.
