Composite fairing for high-speed train

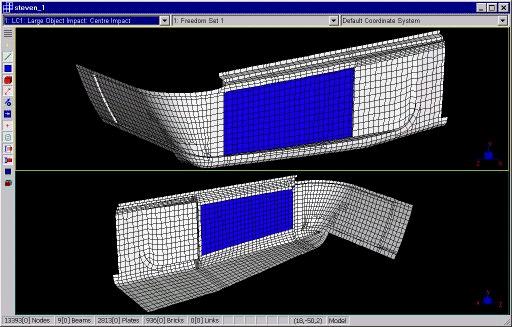

A fairing for a high-speed train is constructed from composite materials.

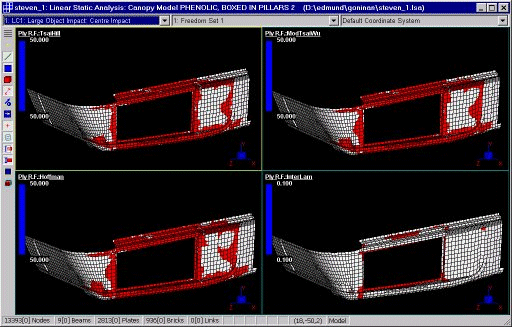

Strand7 supports a number of different reserve factors for the assessmemt of composite material failure. Each window shows a contour for a different reserve factor. Grey indicates reserve factors less than 50 while red indicates reserve factors greater than 50. This type of display can be used to quickly identify regions that may need closer inspection.
