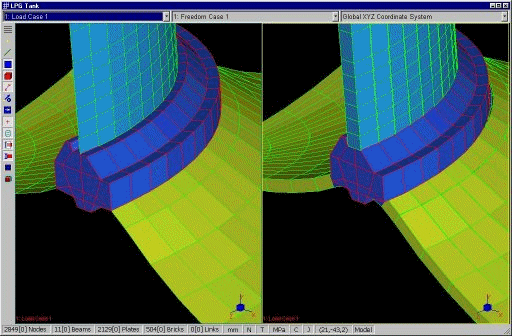

Plate thickness display Strand7 can render plate element thickness. This lets you clearly visualise the relative thickness of each plate, and helps you check for errors.

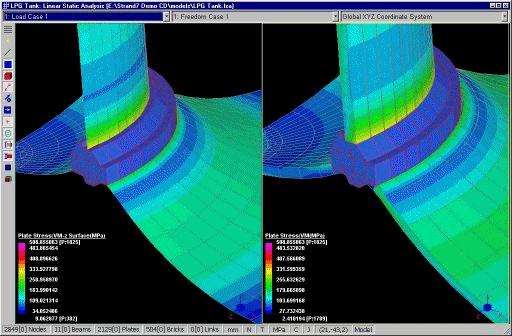

You can easily contour results, such as stresses, on both plate surfaces simultaneously. Through-thickness variation of stress is also drawn.
