Plies: Import/Export Ply Data

Description

Ply data may be imported from, and exported to, their respective libraries.

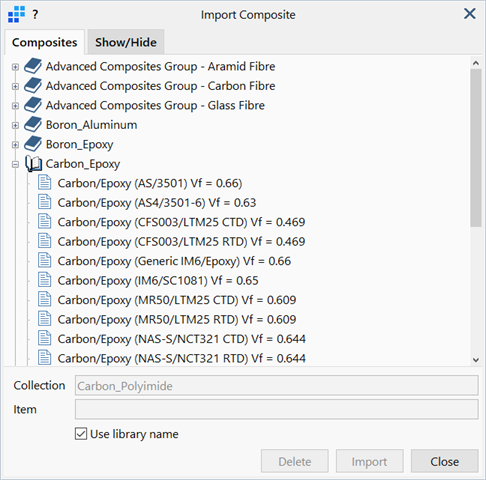

Import Ply Data

Select and import ply data from the library.

Collections List

List of all available data collections. Each collection contains a number of data definitions.

Collection

Name of the collection to which the selected data definition belongs.

Item

Name of the selected data definition.

Use library name

If set, the ply property data name is changed to the Item name upon import.

Show / Hide Tab

List of available collections.

Selected collections are shown in the library data tab, while unselected collections are hidden.

Delete

Deletes the selected data definition from the parent collection.

Import

Assigns the selected data to the ply data entry.

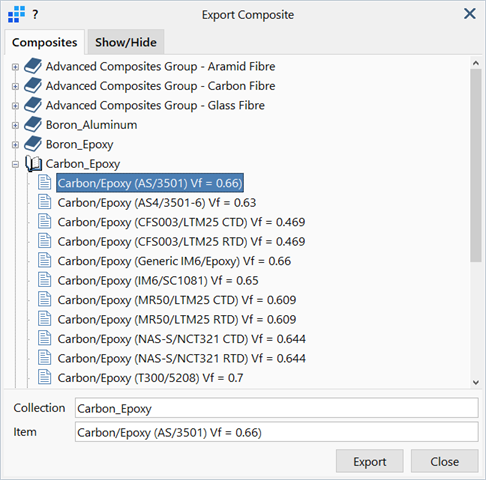

Export Ply Data

Collection List

List of all available data collections. Each collection contains a number of data definitions.

Collection

Name of the collection to export to.

A new collection will be created if the name does not match any of the existing collections.

Item

Name of the exported data definition.

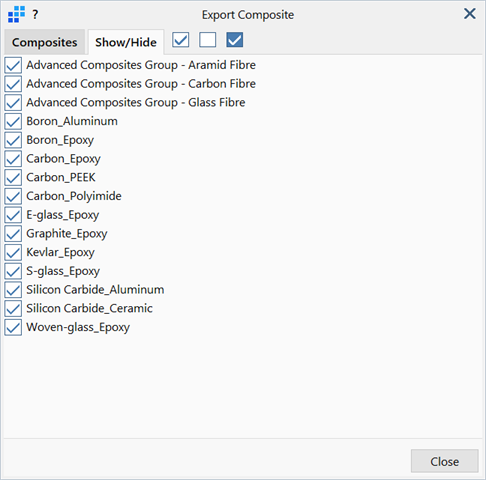

Show / Hide Tab

List of available collections.

Selected collections are shown in the library data tab, while unselected collections are hidden.

Export

Exports the data definition to the specified collection.
