Edge Attributes: Normal Pressure
Description
Assigns edge pressure to selected geometry edges.
When the geometry is automeshed, plates created along the geometry edge will inherit the edge pressure attribute (see Plate Attributes: Edge Normal Pressure).
The pressure acts in the plane of the plate in the direction normal to the edge. A positive pressure acts outwards and a negative pressure acts inwards.
The magnitude of the resultant force is equal to pressure × edge length × membrane (or equivalent) thickness.
Pressure attributes are load case dependent.

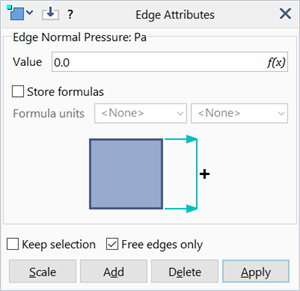

Dialog
Value
Edge pressure.
Common Controls
- Components
- Equation Editor
- Store formulas / Formula units
- Retrieve from model
- Keep selection
- Free edges / Free faces
- Scale / Add / Delete / Apply
Units
Stress (e.g., Pa, psi).
