Plate Attributes: Soil In-situ Ratios

Description

Assigns the overconsolidation ratio and initial void ratio for Cam-Clay soil materials to selected plate elements.

In the absence of these attributes, the values specified in the property are used.

Soil in-situ ratio attributes are independent of load and freedom cases.

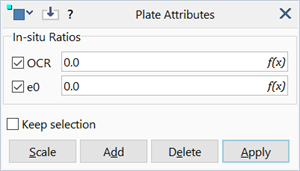

Dialog

OCR

Overconsolidation ratio.

eo

Void ratio.

Common Controls

• Components
• Equation Editor
• Retrieve from model
• Keep selection
• Scale / Add / Delete / Apply

Units

Dimensionless.
