Results: Brick Cutting Planes

Description

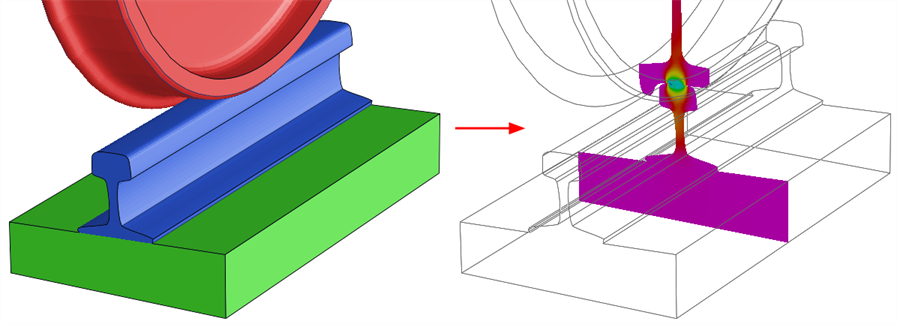

Brick results such as stress and heat flux, can be displayed on planes defined via selected coordinate systems.

Multiple cutting planes can be simultaneously displayed.

Forces and moments across the cutting planes can be automatically integrated for structural solutions; flux summations can be automatically integrated for heat transfer solutions.
