Laminates: Assign Laminate Layout to Property

Description

Assigns the current laminate layout to selected plate properties.

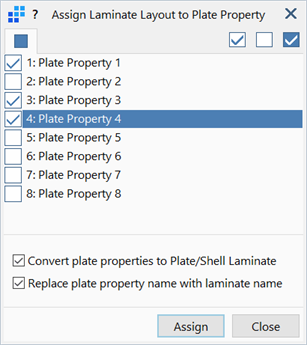

Dialog

Entity tabs

Lists all available plate properties for selection.

Selections

Selects the entire list of plate properties, clears the entire list of plate properties or inverts the current plate property selections.

Convert plate properties to Plate/Shell Laminate

If set, changes the selected plate property type to Plate/Shell Laminate. A laminate layout can only be applied to Plane Stress, Plate/Shell and 3D Membrane type properties, with the Plate/Shell type being the most common and practical one.

Replace plate property name with laminate name

If set, the selected plate properties are assigned the name of the laminate.

If not set, the plate property name is left as is.
