Strand7 Menu: View Log File

Description

Displays all log files associated with the current model and opens a selected log file in the View Log File: Log File Viewer.

Log files are text files containing information and messages produced by importing, automeshing and the solvers.

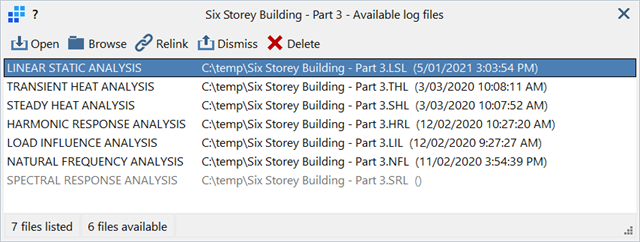

The Available log files window displays the log file types, paths, names, date and time of all associated log files for the current model. Functions to relink, delete, associate and disassociate log files are also available.

The log file types and respective file extensions are as follows:

Automesh log *.LOG
Import log *.LOG
Load influence load case generation log *.LOG
Linear static solver log *.LSL
Linear buckling solver log *.LBL
Load influence solver log *.LIL
Nonlinear static solver log *.NLL
Quasi-static solver log *.QSL
Natural frequency solver log *.NFL
Harmonic response solver log *.HRL
Spectral response solver log *.SRL
Linear transient dynamic solver log *.LTL
Nonlinear transient dynamic solver log *.NTL
Steady state heat solver log *.SHL
Transient heat solver log *.THL
In-situ stress analysis log *.ISL

Dialog

Open

Opens the currently highlighted log file.

Browse

Displays the Open file dialog, which allows navigation to different folders for the selection of log files. Log files found by browsing are added to the file list.

If multiple log files are selected, each will be opened in individual log file viewer.

Relink

Selects a folder. Log files of the same name as the current model contained in the folder will be associated with the model and added to the file list.

Dismiss

Removes the currently highlighted log file from the file list. Dismissed log files are not deleted.

The Browse or Relink functions can be used to re-associate the dismissed log file with the model so that it is again included in the file list.

Delete

Deletes the currently highlighted log file along with its entry in the file list.
