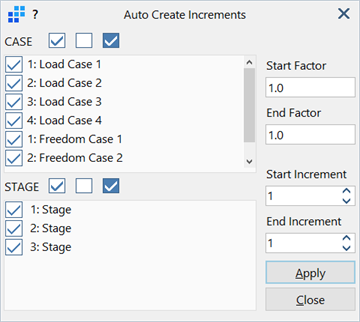

Solver Increments: Auto-Create Increments

Description

Populates the increments table with constant or linearly varying load factors. The specified start and end factors are linearly interpolated and assigned to all increments between the start and end increments.

CASE / STAGE

Selects the load cases, freedom cases and stages for which load factors are to be generated. The STAGE section is empty in unstaged analysis.

• Selections



  Selects all, clears all or inverts all the selected cases and stages.

Start Factor

The load factor that is applied to the Start Increment.

End Factor

The load factor that is applied to the End Increment.

Start Increment

The increment number to which the Start Factor is assigned.

End Increment

The increment number to which the End Factor is assigned.
