Face Attributes: ID

Description

Assigns IDs to selected faces.

When the geometry is automeshed, plates created on the face will inherit the ID attribute of the face (see Plate Attributes: ID).

IDs can be used to group faces together or for other user-intended purposes.

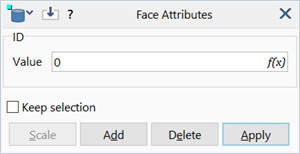

Dialog

Value

The ID as an integer.

If a real number is entered directly or as the result of a scaling operation, the ID is rounded to the nearest integer.

IDs may be positive or negative.

Common Controls

• Components
• Equation Editor
• Retrieve from model
• Keep selection
• Scale / Add / Delete / Apply

See Also

• Plate Attributes: ID
• Selection Functions: Select by ID
