Face Attributes: Normal Pressure

Description

Assigns uniform pressure normal to the surfaces of selected faces.

When the geometry is automeshed, plates created on the face will inherit the normal pressure attribute (see Plate Attributes: Face Normal Pressure).

Different pressure can be applied on the -z and +z surfaces. Positive pressure acts inwards onto the surface. Negative pressure acts outwards away from the surface.

Pressure attributes are load case dependent.

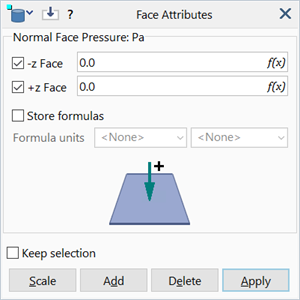

Dialog

Pressure -z /+z

Pressure on the corresponding surfaces.

Common Controls

• Components
• Equation Editor
• Store formulas / Formula units
• Retrieve from model
• Keep selection
• Scale / Add / Delete / Apply

Units

Stress (e.g., Pa, psi).

See Also

• Plate Attributes: Face Normal Pressure
• Face Attributes: Global Pressure
