Geometry Tools: Intersect Edges

Description

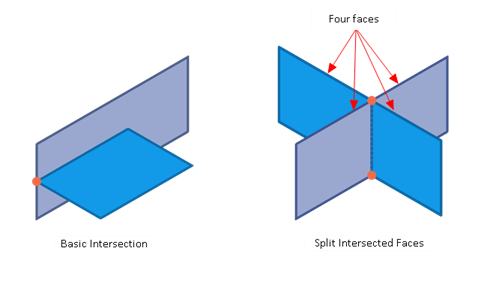

Intersects selected geometry edges. Vertices are placed at the intersection positions.

Faces may also be split if they share exactly two intersection points and have coincident split lines.

Dialog

Distance

Distance used to determine if two edges are close enough to create an intersection point.

There are two options available to specify the distance:

Absolute

The absolute distance specified in the length units of the model.
Relative

The distance is equal to the nominal size of the model multiplied by the value entered.

Nominal size is defined as the largest dimension of a View: Bounding Box (that encloses the model) parallel to the global axes.

Set Feature Length

Set the distances to equal the Minimum Feature Length defined in Tool Options: Tolerance Tab.

Split Intersected Faces

If set, splits faces which share exactly two intersection points and have coincident split lines.
