Geometry Tools: Subdivide Edges

Description

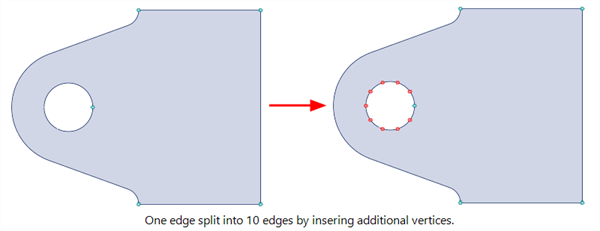

Divides selected edges by inserting intermediate vertices. An edge then becomes multiple edges.

Inserted vertices can either be free or fixed.

Dialog

Divisions

Number of divisions in which to split the edge.

The number of new vertices created is one less than the number of divisions.

Vertex Type

Type of vertices to create on the edge.

Common Controls

• Keep Selection

See Also

• Geometry Tools: Intersect Edges
• Vertex Attributes: Type
