Mesh Tools: Fillet Plates

Description

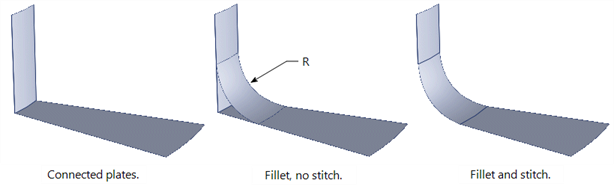

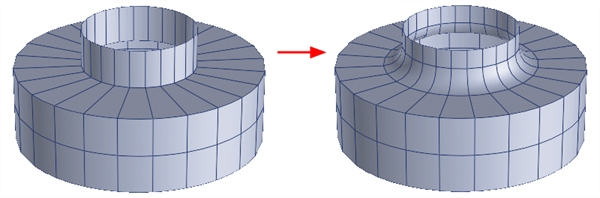

Inserts a curved Quad8 plate element, representing a fillet of specified radius, between a pair of connected non-coplanar plates.

Dialog

Fillet Radius

Radius of fillet plates to generate.

Stitch Plates

If set, the connected plates will be modified to attach them to the fillet plate.

If not set, the fillet plate will be created but it will not be attached to the connected plates.

Note that it may not always be possible to stitch the fillet plate to the connected plates if the fillet radius is too large.
