Creep: Secondary Hyperbolic Creep

Description

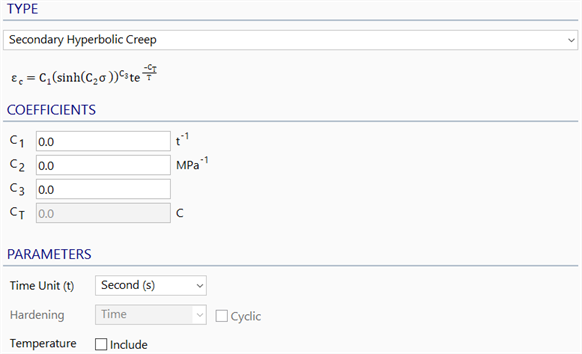

Defines creep data parameters according to the secondary hyperbolic creep law.

The hyperbolic sine form of stress dependency is an alternative expression for secondary creep. The advantage of employing this law is that it behaves like the power law creep at low stress levels, whilst behaving like the exponential creep law at high stress levels.

Toolbar Functions

See LAYOUTS: Creep.

COEFFICIENTS

C₁ is the creep strain coefficient.

C₂ is the creep stress coefficient.

C₃ is the creep stress index.

C_T is the creep temperature coefficient.

PARAMETERS

Time Unit (t)

The unit of time in which the coefficients are specified.

Hardening

Not applicable to this creep law.

Temperature

This option sets whether the creep law is dependent on temperature or not.

If set, the C_T parameter may be specified and the accumulation of creep strain is influenced by the nodal temperatures. The Property Temperature Dependence (see SOLVERS Home: Case Dependence tab) also needs to be assigned in the Quasi-static or Nonlinear Transient Dynamic solver to consider the creep temperature dependence.

If not set, the C_T parameter(s) is not used and the creep behaviour is independent of any applied nodal temperatures.
