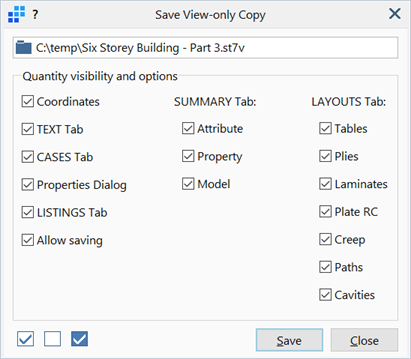

Saving: Save View-only Copy

Description

Saves a view-only copy of the current model to a specified file name and file path with the selected options.

View-only models:

have file extension .st7v;
can be opened by Straus7 and the Straus7 Viewer, allowing viewing and post-processing of the model;
cannot be modified, except for settings such as views, colours, and so on; depending on the state of the Allow saving option, view-only models can be re-saved such that settings like views, colours, and so on, are kept for next time;
cannot be exported;
cannot launch the solver;
cannot be converted to an .st7 file;
are encrypted.

Quantity visibility and options

If set, the selected quantity is viewable in the view-only copy of model.

If not set, the selected quantity is not available in the view-only copy of model.

Selections

Selects, clears, inverts the options.
