Special Topics: How Solvers Use Tables

Description

Tabular values in Straus7 are interpolated and extrapolated according to the table-specific rules detailed below.

Interpolation of Tabular Values

Straus7 carries out a linear interpolation between points in a table to calculate intermediate values.

Y Value

For a given X value, the Y value is found by linear interpolation over the segment containing X.

Gradient

The gradient at any point X is equal to the gradient of the line on which X falls. When X falls exactly on a point in the table, the gradient of the following segment is used. Examples are illustrated in the figure below.

Data outside the X range

The method used to extrapolate data outside the table range depends on the table type. Three methods for extrapolating the data are used.

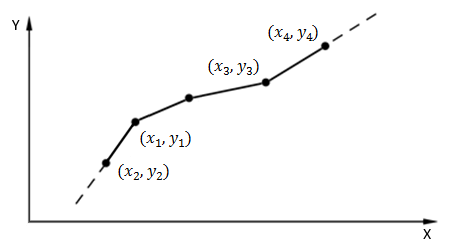

  1. Extending a table by continuing the gradient at both ends as shown in the following figure. This is used with the following tables: Stress vs Strain, Force vs Displacement, Force vs Velocity, Moment vs Curvature and Moment vs Rotation.

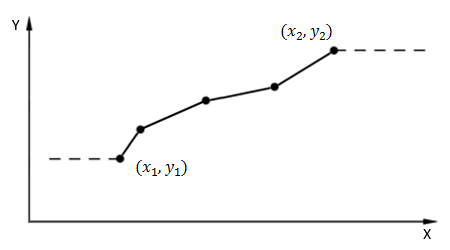

  2. Extending a table by keeping the Y value constant at both ends as shown in the following figure. This is used with all table types except those listed in method 1 above and Factor vs Time tables.

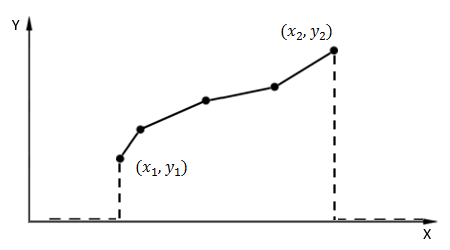

  3. Setting the data outside the range to zero as shown in the following figure. This is used with Factor vs Time tables.

Summary of table extrapolation modes

Table Type The end gradients are maintained. The end Y values are maintained The Y values are set to zero.
Acceleration vs Time
Velocity vs Time
Displacement vs Time
Factor vs Velocity

Factor vs Time

(when used for load and displacement)



Factor vs Time

(when used for material properties)



Factor vs Time

(when used for heat flux and heat source attributes)





Factor vs Time

(when used for heat transfer radiation/convection coefficients)





Factor vs Temperature
Factor vs Frequency/Period
Factor vs Position
Temperature vs Time
Strain vs Time
Stress vs Strain
Force vs Displacement
Force vs Velocity
Moment vs Curvature
Moment vs Rotation

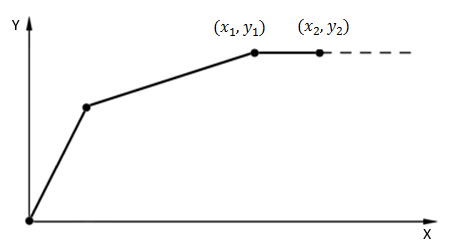

Note that to define elastic-perfectly-plastic material behaviour for Stress vs Strain, Moment vs Curvature, Moment vs Rotation and Force vs Displacement tables, the last two points in the table must have the same Y value. Straus7 considers that the table is extended as shown in the following figure. An additional requirement for these tables is that they have a point at (0,0).

Duplicate X Values

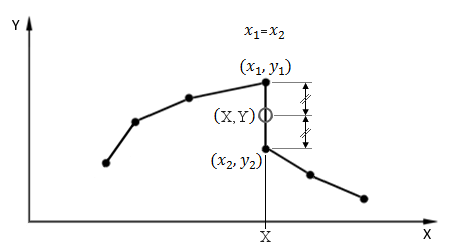

Duplicate X values, as illustrated in the figure below, may be used in some situations (e.g., in a Factor vs Time table used to scale a load case as a function of time).

Y Value

For an X precisely equal to the duplicate point, the Y value is taken as the average of the y values. That is,

.

For other X values, the interpolation rules described above are used.

Gradient

The gradient cannot be evaluated at an X precisely equal to the duplicate X value. An error will be generated if it is attempted.

Effect of Nonlinear Type in the Element Property Definition

When a table is used to define nonlinear material behaviour for Stress vs Strain, Moment vs Curvature, Moment vs Rotation and Force vs Displacement, the type of nonlinearity, yield criterion and element type determine whether only the positive side or both sides of the table are used.

Table Type

Criterion or usage Nonlinear Elastic Elastic-Plastic

Stress vs Strain

von Mises Positive side Positive side

Stress vs Strain

Tresca Positive side Positive side

Stress vs Strain

Max Stress Both sides N/A

Stress vs Strain

Beam Fibre Stress

Both sides

Both sides

Moment vs Curvature

Beam Both sides Both sides

Moment vs Rotation

Connection Beam

Spring-Damper

Both sides

Both sides

Axial Force vs Displacement

Beam Both sides Both sides

Thermal Expansion vs Temperature

When a Factor vs Temperature table is used in an element property definition to describe the variation of thermal expansion coefficient with temperature, the thermal expansion coefficient, , at a temperature, , is calculated as , where is the nominal value of the coefficient defined in the material property data, and is the table factor at the specified temperature interpolated from the Factor vs Temperature table (see Common Properties: Tables).

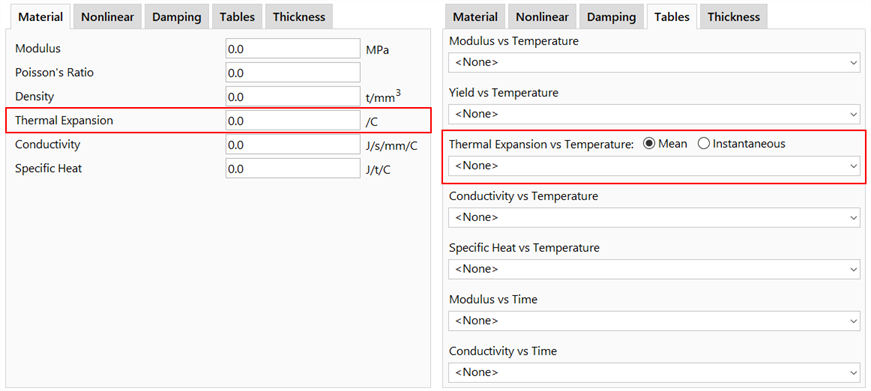

When such a table is used, a distinction is made between an instantaneous thermal expansion coefficient and a mean thermal expansion coefficient. This is specified on the property dialog via the Mean and Instantaneous options.

The instantaneous coefficient is straightforward: the coefficient of thermal expansion at any temperature, , is simply the gradient of the relationship at that temperature. Therefore, the total thermal strain increment generated between two points on the table (i.e., from to ) is found by integrating the table between those two temperature values and multiplying by . That is,

This is effectively the sum of all incremental thermal expansions from to .

On the other hand, the mean coefficient at any temperature, , represents the average thermal expansion coefficient relative to some reference temperature, , used to produce the Factor vs Temperature table ( is not necessarily the same as the reference temperature, , used in the Straus7 model). In this case, the strain increment from to is equal to the difference between the strain at and the strain at . That is,

.

Where , .

is taken as the first point in the Factor vs Temperature table.
