Plate Attributes: Edge Transverse Shear Stress

Description

Assigns transverse shear stress to selected edges of plate elements.

The shear stress acts on the edge, in the direction of the local z axis of the plate. A positive shear stress acts in the +z direction and a negative pressure acts in the -z direction.

The magnitude of the resultant force is equal to shear stress × edge length × membrane (or equivalent) thickness.

Shear stress attributes are load case dependent.

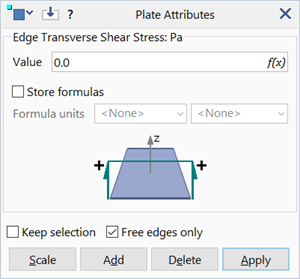

Dialog

Value

Plate edge normal shear stress.

Common Controls

• Components
• Equation Editor
• Store formulas / Formula units
• Retrieve from model
• Keep selection
• Free edges / Free faces
• Scale / Add / Delete / Apply

Units

Stress (e.g., Pa, psi).

See Also

• Edge Attributes: Transverse Shear Stress
• Plate Attributes: Edge Normal Pressure
• Plate Attributes: Edge Shear Stress
