Edit: Interpolated MPL

Description

Edits the connectivity of an interpolated multi-point link (MPL).

Link connectivity is edited in three steps as described in Edit: Multi-point Link.

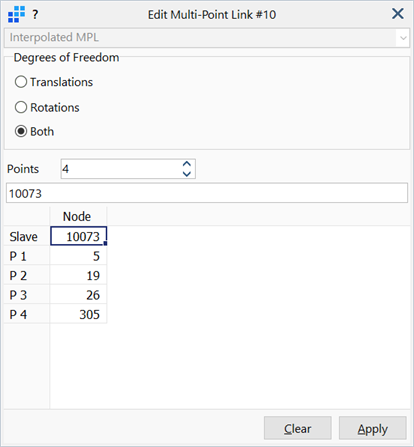

Dialog

DoF

Degrees of freedom interpolated by the link.

Points

Number of nodes connected to the MPL, excluding the slave node.

Node Table

List of nodes connected to the MPL. The first node is the slave node and all the others are the master nodes.

Clear

Discards the data in the dialog, allowing for another MPL to be selected for editing.

Apply

Checks the link connectivity and other data, and if it is valid, the MPL is updated.
