Edit: Reaction MPL

Description

Edits the connectivity of a reaction multi-point link (MPL).

Link connectivity is edited in three steps as described in Edit: Multi-point Link.

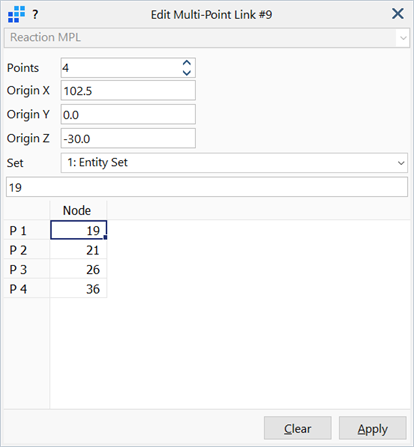

Dialog

Points

Number of nodes connected to the MPL.

Origin (X/Y/Z)

Coordinates of the origin in the global coordinate system. Moments will be calculated about this point.

Set

Entity set containing elements used by the MPL for the calculation of reaction forces and moments.

Node Table

List of nodes connected to the MPL.

Clear

Discards the data in the dialog, allowing for another MPL to be selected for editing.

Apply

Checks the link connectivity and other data, and if it is valid, the MPL is updated.
