Global: Create Entity UCS

Description

Creates user defined coordinate systems on selected beams, plates, bricks, geometry faces and load paths. One coordinate system is created for each selected entity.

Beam Elements

A Cartesian UCS, aligned with either the local or principal axes of the beam, is created. The origin of the UCS can be at either end of the beam or at the centroid of the beam. Beam offset attributes, if applied, are considered and the UCS is moved to the offset position.

For curved pipe elements, a cylindrical UCS may be created at the centre of curvature, in place of a Cartesian UCS.

Plate Elements

A Cartesian UCS is created aligned with the plate's local axis system. The origin of the UCS can be set to the centre, minimum or maximum positions of the UCS aligned View: Bounding Box of the plate.

Geometry Faces

Only available for analytical geometry faces (plane, cylinder, cone, sphere, torus).  The type of the UCS created matches the surface type.

Load Paths

For straight load paths a Cartesian UCS is created aligned with the local load path coordinate system.  A cylindrical UCS positioned at the centre of curvature is created for curved load paths.

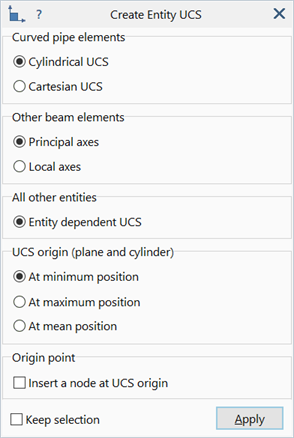

Dialog

Curved pipe elements

Type of UCS to create for curved pipe elements.

Other beam elements

Type of UCS to create for beam elements other than curved pipes.

All other entities

Type of UCS to create for entities other than beam or curved pipe elements.

UCS origin (plane and cylinder)

Position of the UCS origin when the UCS created is either a Cartesian or a cylindrical UCS.

Insert a node at UCS origin

If set, a node is inserted at the origin of each UCS created.

Keep Selection

If set, entities remain selected after clicking Apply. Additional functions may then be applied without the need to reselect the entities. If not set, selected entities will be unselected after the function is executed.
