Result Settings: Settings Style Tab
Description
Configures the style of the results display.

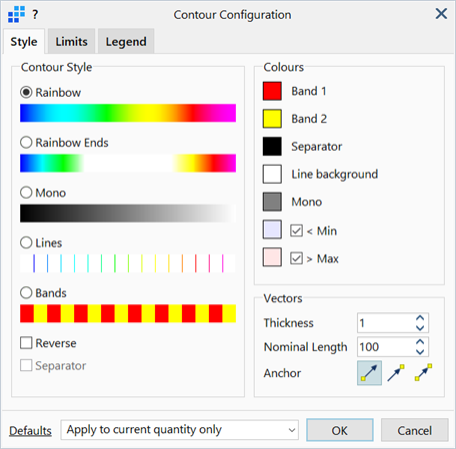

Dialog
Contour Style
-

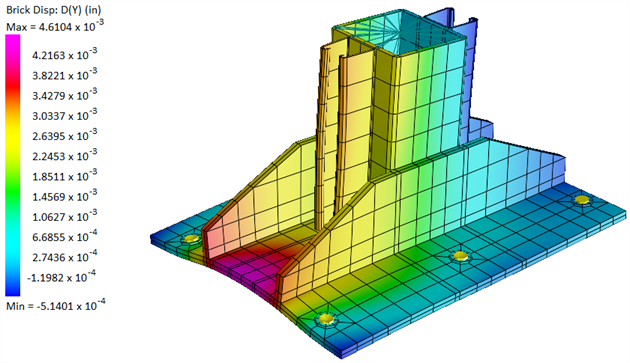

Rainbow
Displays the contour in rainbow colours.
-

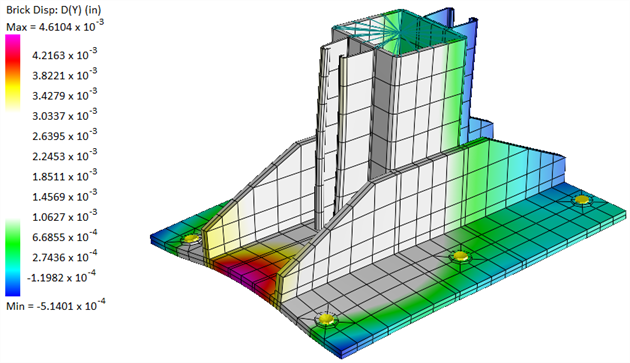

Rainbow Ends
Displays the contour in concentrated rainbow colours in the lower and upper ends, while the middle region is filled with white.
-

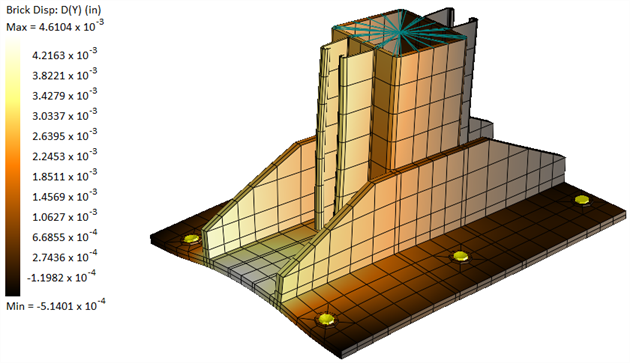

Mono
Displays the contour with a single colour varying in lightness from black through to white.
-

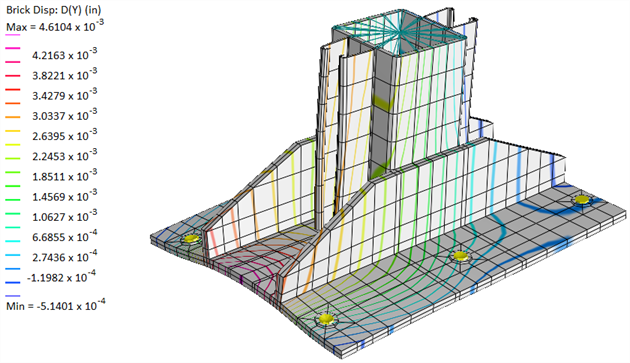

Lines
Displays the contour with coloured line separators on a background of colour Line background.
-

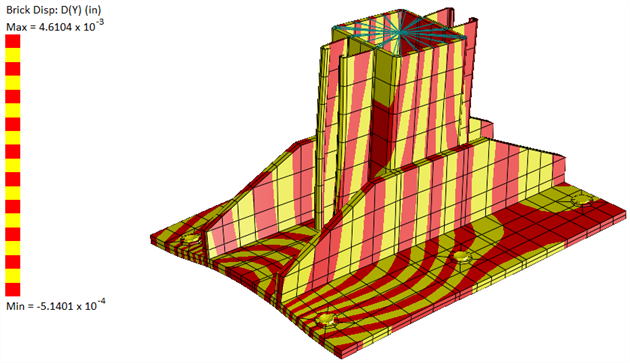

Bands
Displays the contour in alternating bands of two colours, Band 1 and Band 2.
-
Reverse
If set, all colour schemes are reversed.
-
Separator
If set, the result contour is displayed with a separator line between each colour band.
This is only available when Number of Contours is set to Discrete under the Limits tab or User Defined Contour Limits are set.
Colours
-
Band 1 / Band 2
Colours associated with the Bands contour style.
-
Separator
Colour of the separator, if used.
-
Line background
Background colour of the Lines contour style.
-
Mono
Base colour of the Mono contour style.
-
< Min
If set, entities with result values less than the minimum limit specified under Limits tab are contoured with this colour.
-
> Max
If set, entities with result values exceeding the maximum limit specified under Limits tab are contoured with this colour.
Vectors
-
Thickness
The line thickness, in pixels, of result vectors.
-
Nominal Length
The nominal base length of result vectors, measured in pixels.
-
Anchor
Anchor result vectors at tail or head or both.
Apply to current quantity only
If selected, applies the settings only to the current result quantity for this entity (e.g., displacement, effective stress).
Apply to all quantities for this entity
If selected, applies the settings to the all result quantities for this entity (e.g., displacements, stresses), for the current entity.
