Print Preview: Printing Graphics
Description

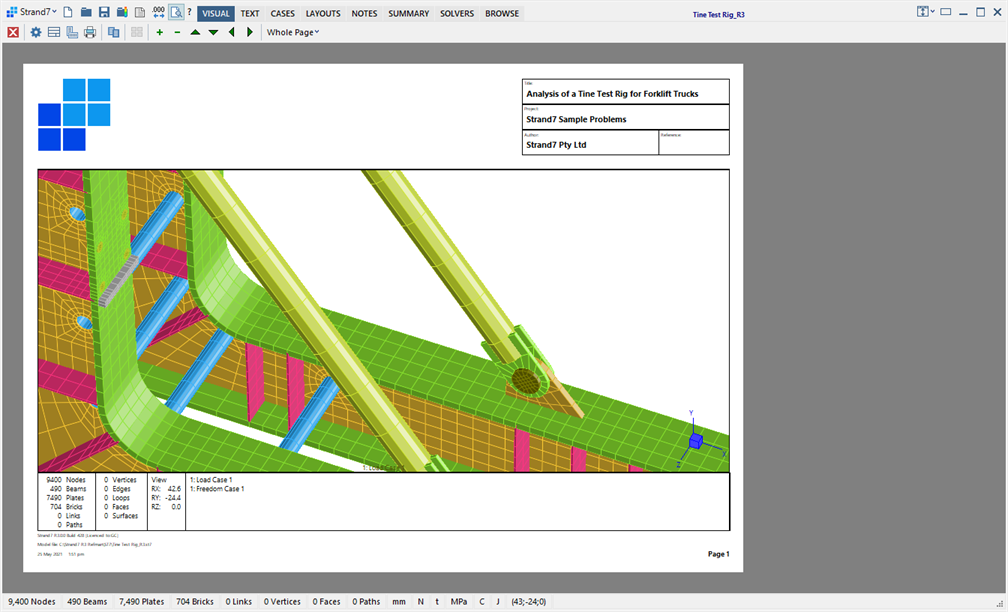

This print preview mode is displayed if activated while the The VISUAL Tab is open (see Strand7 Interface: Strand7 Layout).
Functions
Close Preview
Exits print preview mode.
Formatting Options
Opens Print Preview: Formatting Options to configure the print layout and fonts.
Title Block
Opens the Title Block dialog for entering or editing title block information.
See The NOTES Tab.
Orientation
Switches the print layout between portrait and landscape.
Sends a print job to the printer. See Print Preview: Print.
Copy to clipboard
Copies the print preview content to the Windows clipboard as an image.
Multiview
Switches the print output to include multiple views.
This function is only available if View: Multiview is active in the model display.
Zoom in/out
Increases or decreases the size of the model image relative to the printed area.
Pan up/down/left/right
Moves the model image in the specific direction relative to the printed area.
Preview zoom
Adjusts the zoom to a predefined amount.
Preview zooming can also be operated using mouse left click (to zoom in) and mouse right click (to zoom out) in the preview area.
