SOLVERS: Load (Heat)

Description

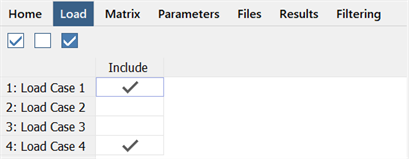

Selects load cases to include for the Steady Heat and Transient Heat solvers.

In the Steady Heat solver, one load case is solved per solver run. If multiple load cases are selected, successive solver runs are automatically initiated and the results from each run are appended to the same results file, which means that all the result cases are available in the one result file.

In the Transient Heat solver, all included load cases are combined and act simultaneously. This can include thermal load such as heat flux and convection heat transfer from multiple selected load cases. However, node temperature attributes in the included cases are not considered here. In the Transient Heat solver, only one load case may be used to define the applied fixed nodal temperature, and this load case is selected via SOLVERS Home: Case Dependence.

Selections

Selects all cases, clears all cases or inverts the selected cases.
