Brick Attributes: Pre-load

Description

Assigns pre-load as either pre-stress or pre-strain to selected brick elements.

Pre-load is applied in the direction of the local x, y and z axes of the brick. If the brick does not have local axes assigned, the directions revert to the global XYZ axes.

A positive value of pre-load causes an unrestrained element to contract.

A negative value of pre-load causes the element to stretch.

Pre-load attributes are load case dependent.

Dialog

Type

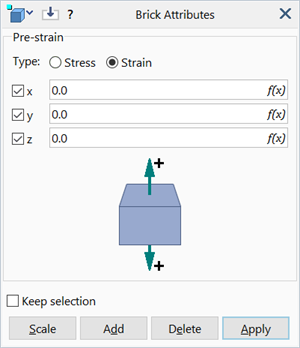

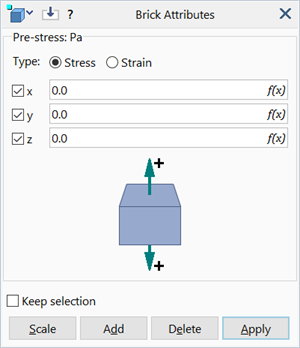

Pre-load type as either pre-stress or pre-strain.

Value x / y / z

Three components of pre-load in the brick's local x, y and z axes.

Common Controls

Components
Equation Editor
Retrieve from model
Keep selection
Free edges / Free faces
Scale / Add / Delete / Apply

Units

Pre-stress: Stress (e.g., Pa, psi).

Pre-strain: Dimensionless.
