Plate Attributes: Face Convection Ambient Temperature

Description

Assigns a convection ambient temperature to surfaces of selected plate elements.

Applicable only to heat transfer analysis.

Models uniform heat flow via convection through the surface of the plate to or from an ambient environment. The attribute is paired with a plate face convection coefficient attribute, which together define the heat flow rate.

Different ambient temperatures can be defined on the -z and +z surfaces.

The ambient temperature can be scaled as a function of time.

Convection ambient temperature attributes are load case dependent.

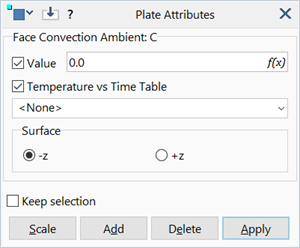

Dialog

Value

Convection ambient temperature on the plate surface.

Temperature vs Time table

A table that varies the ambient temperature as a function of time.

Applicable only to the transient heat solver.

Surface

The surface on which the attribute is applied.

• +z

  Ambient temperature is on the +z surface of the plate.

• -z

  Ambient temperature is on the -z surface of the plate.

• Both

  Ambient temperature is on both surfaces of the plate.

Common Controls

• Components
• Equation Editor
• Retrieve from model
• Keep selection
• Scale / Add / Delete / Apply

Units

Temperature (e.g., °C, °F).

See Also

• Plate Attributes: Face Convection Coefficient
• LAYOUTS: Tables
