Edit: Rigid MPL

Description

Edits connectivity of rigid multi-point links (MPL).

Link connectivity is edited in three steps as described in Edit: Multi-point Link.

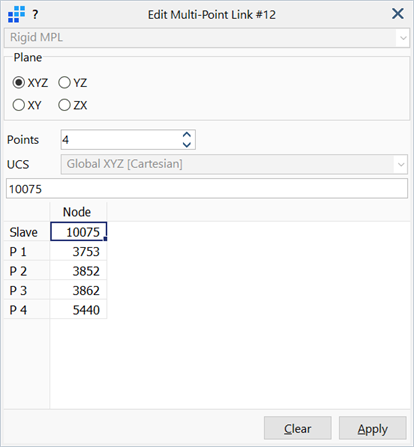

Dialog

Plane

Rigid links can be rigid in 3D space, or rigid only on a plane of a Cartesian coordinate system.

Points

Number of nodes connected to the MPL, excluding the slave node.

UCS

The coordinate system (UCS) in which the active plane is defined.

Node Table

List of nodes connected to the MPL. The first node is the slave node and all the others are the master nodes.

Clear

Discards the data in the dialog, allowing for another MPL to be selected for editing.

Apply

Checks the link connectivity and other data, and if it is valid, the MPL is updated.
