Copy Tools: by Increment

Description

Copies selected entities by an increment specified using three components and a coordinate system.

For multiple repeats, the position of each copy is progressively incremented from the position of the source entity.

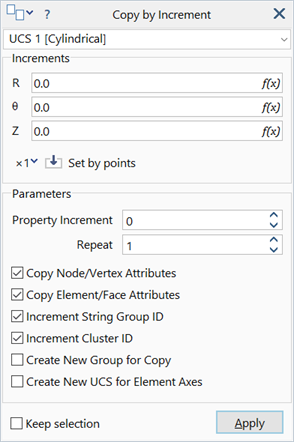

Dialog

Coordinate System

The coordinate system (UCS) in which the increment is defined.

Increments X / Y / Z

Three components of increment.

Set by points (×1 / × 2 / ×3 / ×1/3 / ×1/2)

When the increments are obtained using Set by points, the increments are multiplied by the selected scaling factor before the values are placed into the edit boxes. Changing the scaling factor affects only subsequent increment retrievals, not the current increment values in the edit boxes. The scaling factors are not applicable to increments typed directly into the edit boxes.

Common Controls

• Components
• Equation Editor
• Distance/Increment Selection
• Property Increment
• Repeat
• Copy Node/Vertex Attributes
• Copy Element/Face Attributes
• Increment String Group ID
• Create New Group for Copy
• Create New UCS for Element Axes
• Keep Selection
