Extrude Tools: by Increment

Description

Extrudes selected nodes, beams, plates and brick faces by an increment specified using three components and a coordinate system.

Nodes are extruded into beams or links, beams are extruded into plates, and plates or brick faces are extruded into bricks.

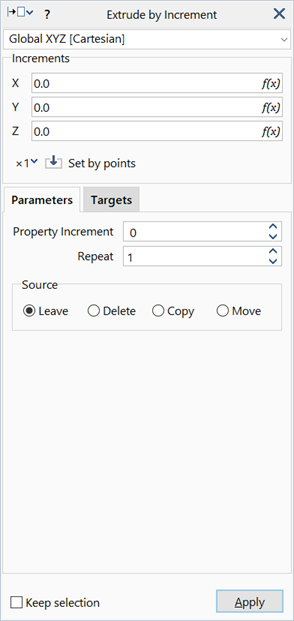

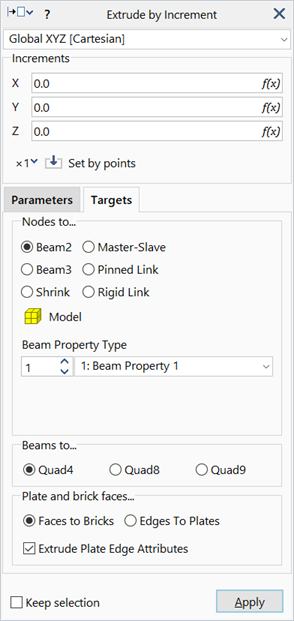

Dialog

Coordinate System

The coordinate system (UCS) in which the increment is defined.

Increments X / Y / Z

Three components of increment.

Set by points (×1 / ×2 / ×3 / ×1/3 / ×1/2)

When the increments are obtained using Set by points, the increments are multiplied by the selected scaling factor before the values are placed into the edit boxes. Changing the scaling factor affects only subsequent increment retrievals, not the current increment values in the edit boxes. The scaling factors are not applicable to increments typed directly into the edit boxes.
