Copy Tools: by Mirror

Description

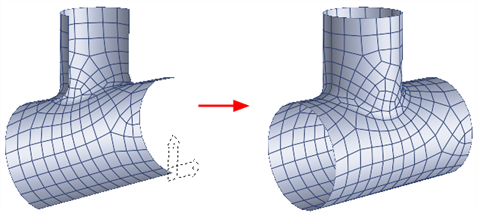

Copies selected entities by mirroring them across the specified plane.

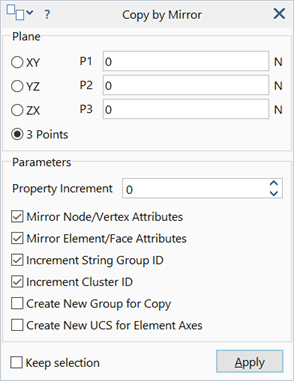

Dialog

Plane

The mirror plane about which the selected entities are copied.

• XY

  The global XY plane.

• YZ

  The global YZ plane.

• ZX

  The global ZX plane.

• 3 Points

  A mirror plane defined by three points.

P1

A single point positioning the global XY, YZ or ZX plane. If the point is zero, the plane passes through the origin of the coordinate system.

P1 / P2 / P3

Three points defining a mirror plane. Applicable only when 3 Points is selected under Plane. All three must be non-zero.

Common Controls

• Components
• Point selection
• Property Increment
• Copy Node/Vertex Attributes
• Copy Element/Face Attributes
• Increment String Group ID
• Create New Group for Copy
• Create New UCS for Element Axes
• Keep Selection
