Move Tools: by Mirror

Description

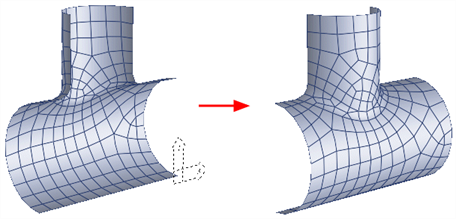

Moves selected entities by mirroring them across the specified plane.

Dialog

Plane

The mirror plane across which the selected entities are moved.

• XY

  The global XY plane.

• YZ

  The global YZ plane.

• ZX

  The global ZX plane.

• 3 Points

  A mirror plane defined by three points.

P1

A single point positioning the global XY, YZ or ZX plane. If the point is zero, the plane passes through the origin of the coordinate system.

P1 / P2 / P3

Three points defining a mirror plane. Applicable only when 3 Points is selected under Plane. All three must be non-zero.

Common Controls

• Components
• Point selection
• Keep Selection

See Also

• Move Tools: Move Nodes vs Move Elements
• Copy Tools: by Mirror
