Extrude Tools: by Projection to Point

Description

Extrudes selected nodes, beams and plates to a target point.

Nodes are extruded into beams or links, beams are extruded into plates, and plates or brick faces are extruded into bricks.

Projection is undertaken on a node by node basis and the result depends on both the source and how the target direction is defined, as described in Tools: Project to Point.

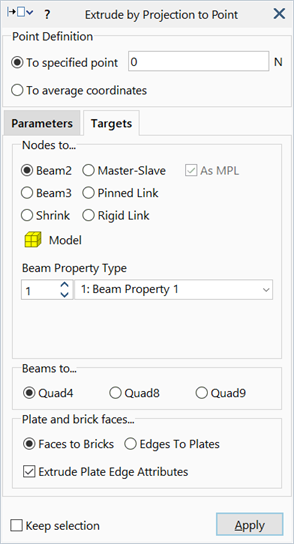

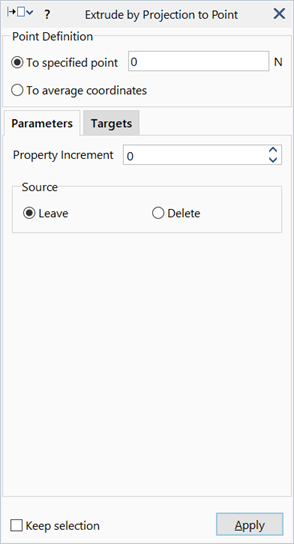

Dialog

To specified point

Target point for the extrusion.

To average coordinates

Target point for the extrusion determined by averaging the coordinates of all relevant nodes of selected source entities.
