Print Preview: Printing Graphics

Description

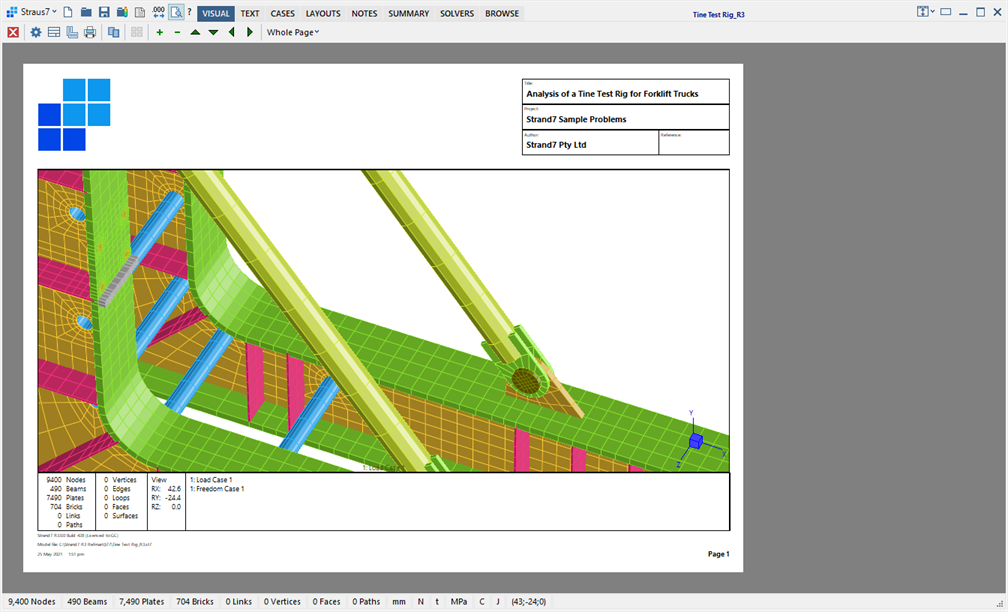

This print preview mode is displayed if activated while the The VISUAL Tab is open (see Straus7 Interface: Straus7 Layout).

Functions

Close Preview

Exits print preview mode.

Formatting Options

Opens Print Preview: Formatting Options to configure the print layout and fonts.

Title Block

Opens the Title Block dialog for entering or editing title block information.

See The NOTES Tab.

Orientation

Switches the print layout between portrait and landscape.

Print

Sends a print job to the printer. See Print Preview: Print.

Copy to clipboard

Copies the print preview content to the Windows clipboard as an image.

Multiview

Switches the print output to include multiple views.

This function is only available if View: Multiview is active in the model display.

Zoom in/out

Increases or decreases the size of the model image relative to the printed area.

Pan up/down/left/right

Moves the model image in the specific direction relative to the printed area.

Preview zoom

Adjusts the zoom to a predefined amount.

Preview zooming can also be operated using mouse left click (to zoom in) and mouse right click (to zoom out) in the preview area.
