Attribute Apply Multiple Point Loads

Description

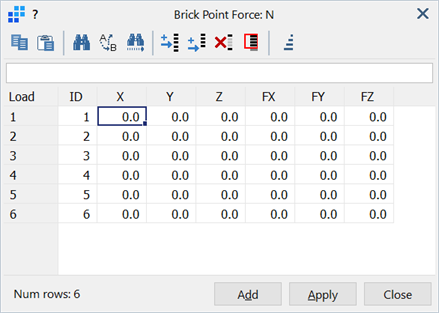

Applies multiple point forces/moments in one operation to plate or brick faces. The loads and their positions are defined in a grid.

Toolbar Functions

Copy to clipboard (Ctrl+C) / Paste from clipboard (Ctrl+V)

Copies the values of the highlighted cells in the grid to the Windows clipboard, or retrieves from it. SeeStraus7 Interface: Right-click Functions for more information.

Find (Ctrl+F) / Replace (Ctrl+R) / Find again (F3)

Opens the Find Cell dialog (see TEXT: Find) or the Replace Cell dialog (see TEXT: Replace) to find or replace data, numeric or text.

Find again repeats the last find for another match.

Insert row

Inserts a new row of data above the highlighted cell.

Add row

Adds a new row of data after the last row.

Delete selected rows

Deletes the highlighted rows.

Reset number of rows

Opens the Reset Rows dialog to set the number of rows in the grid.

Renumber IDs

Resets the values under the ID column to values in ascending order starting from 1.

Right-click Functions

Right-clicking the grid area opens a popup menu and provides additional functions. See Straus7 Interface: Right-click Functions.
