Results Graphs: Lines Tab

Description

List of lines added to the graph.

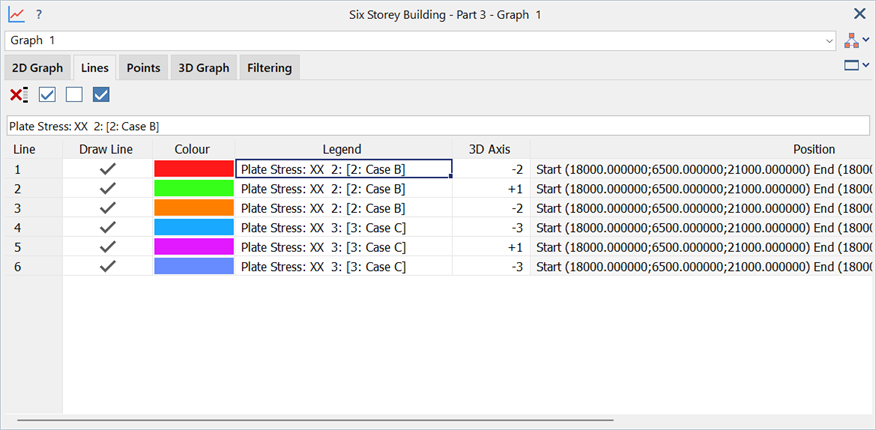

Dialog

Common Controls

Graph List
Graph types...
Window size...

Delete lines

Deletes highlighted lines from the graph.

Selections

Selects all, clears all or inverts selections cases under the Draw Line column.

Draw line

If set, the line is displayed on the graph.

If not set, the line is hidden.

Colour

Colour of the line on the graph.

Double-click the colour cell to open the colour selection dialog or edit the colour as described in Straus7 Interface: Spreadsheet.

Legend

Line label shown in the graph legend.

3D Axis

The UCS axis on which the 3D graph is drawn (see Results Graphs: 3D Graph Tab). This is the axis of UCS in which the graph segment was produced; not the currently selected UCS.

Position

Position(s) used to extract the data points. This is read-only data.

Case

Result case used to extract the data points. This is read-only data.
