View: Show/Hide

Description

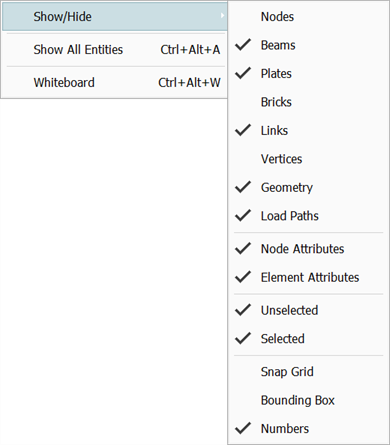

Toggles to show or hide objects in model window.

These options can also be toggled via the Straus7 Layout: Entity Toggle Toolbar toolbar.

Objects

Entities

Visibility toggles for nodes, elements, links, geometry and load paths.

Associated objects, such as labels and attributes, are also hidden when the parent entity is hidden.

Attributes

Visibility toggles for entity attributes.

Select State

Visibility toggles for selected and unselected entities.

Snap Grid

Visibility toggle for the snap grid.

See View: Snap Grid Settings.

Bounding Box

Visibility toggle for the bounding box.

See View: Bounding Box.

Numbers

Visibility toggles for numbers such as attribute values, entity numbers and bounding box dimensions.
