Beam Attributes: Heat Transfer Convection Ambient Temperature

Description

Assigns a convection ambient temperature to selected ends of beam elements.

Applicable only to heat transfer analysis.

Models uniform heat flow via convection through the cross section of the beam end. The attribute is paired with a beam end convection coefficient attribute, which together define the heat flow rate.

The ambient temperature can be scaled as a function of time.

Convection ambient temperature attributes are load case dependent.

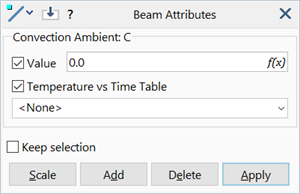

Dialog

Value

Convection ambient temperature at the beam end.

Temperature vs Time table

A table that varies the ambient temperature as a function of time.

Applicable only to the transient heat solver.

Common Controls

• Components
• Equation Editor
• Retrieve from model
• Keep selection
• Scale / Add / Delete / Apply

Units

Temperature (e.g., °C, °F).

See Also

• Beam Attributes: Heat Transfer Convection Coefficient
• LAYOUTS: Tables
