Beam Attributes: Pre-curvature

Description

Assigns pre-curvature in the direction of the principal axes of selected beam elements.

A beam with positive pre-curvature is assumed to be pre-cambered towards the positive direction of the principal axis. Applied to an unrestrained beam, the pre-curvature attribute produces a resulting curvature in the opposite direction.

Pre-curvature does not produce axial strain in non-offset beams.

Pre-curvature attributes are load case dependent.

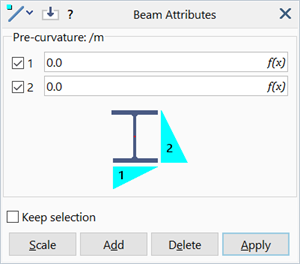

Dialog

Pre-curvature 1 / 2

Two components of pre-curvature in the beam element's principal axis system.

Common Controls

• Components
• Equation Editor
• Retrieve from model
• Keep selection
• Scale / Add / Delete / Apply

Units

1/Length (e.g., 1/m, 1/in).

See Also

• Beam Elements: Local and Principal Axes
• Beam Attributes: Temperature Gradient
