Beam Attributes: Temperature Gradient

Description

Assigns a linear variation of temperature in the through-thickness direction of the cross section along the principal axes of selected beam elements.

The temperature variation generates a curvature in the beam along the specified axes. It does not produce axial strain in non-offset beams. Axial thermal expansion of beams is generated by the presence of nodal temperatures.

A positive gradient corresponds to an increasing temperature from the negative side to the positive side, so the positive side is expanding relative to the negative side.

A negative gradient corresponds to a decreasing temperature from the negative side to the positive side, so the positive side is contracting relative to the negative side.

This attribute is used only by the structural solvers; it is not applicable to heat transfer analysis.

Temperature gradient attributes are load case dependent.

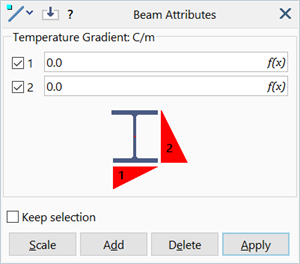

Dialog

Temperature Gradient 1 / 2

Two components of temperature gradient in the beam element's principal axis system.

Common Controls

• Components
• Equation Editor
• Retrieve from model
• Keep selection
• Scale / Add / Delete / Apply

Units

Temperature/Length (e.g., °C/m, °F/in).

Common Uses

Some structural design codes require that structures such as bridges be designed for a difference in temperature through the thickness, such as would occur when the sun is shining on one surface only.
