Plate Attributes: Edge Normal Pressure

Description

Assigns edge pressure to selected edges of plate elements.

The pressure acts in the plane of the plate in the direction normal to the edge. A positive pressure acts outwards and a negative pressure acts inwards.

The magnitude of the resultant force is equal to pressure × edge length × membrane (or equivalent) thickness.

Pressure attributes are load case dependent.

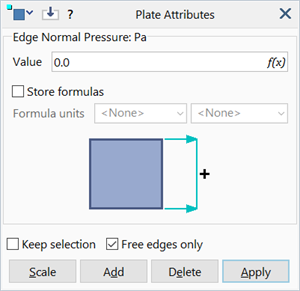

Dialog

Value

Plate edge pressure.

Common Controls

• Components
• Equation Editor
• Store formulas / Formula units
• Retrieve from model
• Keep selection
• Free edges / Free faces
• Scale / Add / Delete / Apply

Units

Stress (e.g., Pa, psi).
