Mesh Tools: Cut Elements

Description

Cuts selected elements using a straight line, a plane, or a cylindrical surface.

Beams can be created at cut plate edges, and plates can be created at cut brick faces.

Dialog

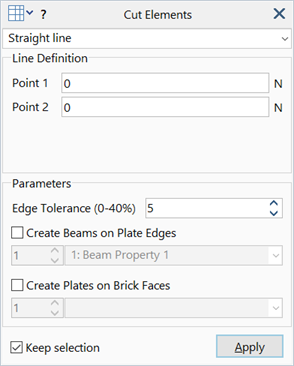

Straight Line Cut

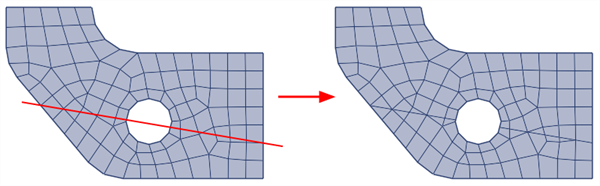

Cuts selected beam and plate elements along their intersection with a straight line.

The line is defined by Point 1 and Point 2.

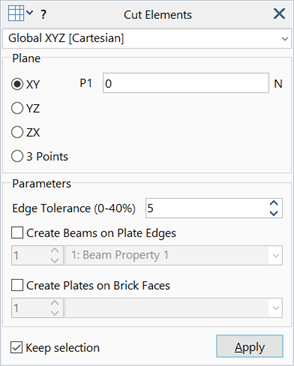

Planar Cut (Cartesian UCS)

Cuts selected beam, plate and brick elements using the selected plane.

Two options are available to define the plane:

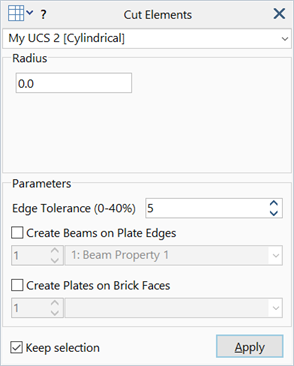

Cylindrical Cut (Cylindrical UCS)

Cuts selected beam, plate and brick elements using a cylindrical surface.

The cylinder is aligned with the UCS and has a constant radius as specified by Radius.

Edge Tolerance

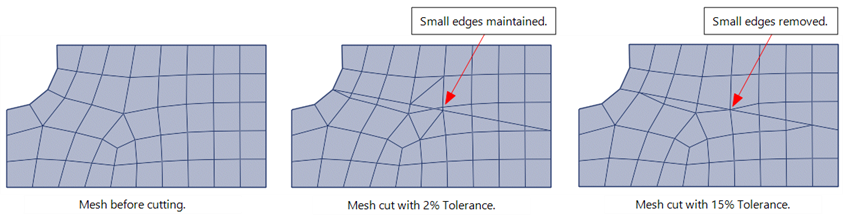

Specifies the minimum beam or edge length allowed as a result of the cut, expressed as a percentage of the edge length prior to the cut.

If a cut results in new beams or edges that are shorter than this length, the short beams and edges are collapsed to their respective intersection points.

Create beams on plate edges

If set, beams are created on cut plate edges.

Beams generated by the tool are assigned the specified beam property. See Beam Attributes: Property Type.

Create plates on brick faces

If set, plates are created on cut brick faces.

Plates generated by the tool are assigned the specified plate property. See Plate Attributes: Property Type.

Common Controls

Validity of cut elements

When cutting a triangle, the cut can produce:

  1. two triangles, or
  2. a triangle and a quadrilateral.

Both of these are valid plate and brick shapes and they will generate the appropriate element types after cutting.

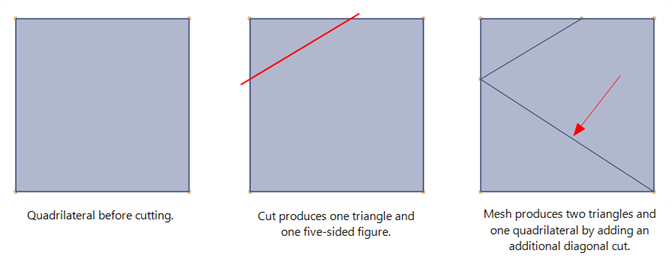

When cutting a quadrilateral, the cut can produce:

  1. two quadrilaterals, or
  2. two triangles, or
  3. a triangle and a quadrilateral, or
  4. a five-sided shape.

The five-sided shape is not a valid element shape, and therefore it is subdivided further into a quadrilateral and a triangle.
