Plate Attributes: Concrete Reinforcement (RC)

Description

Assigns a concrete reinforcement layout to selected plate elements.

The orientation of the reinforcement layers relative to the plate's local axis system can also be specified.

Concrete reinforcement (RC) attributes are independent of load and freedom cases.

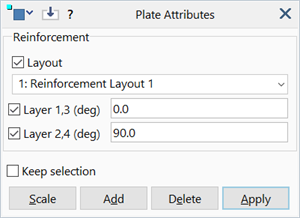

Dialog

Layout

Concrete reinforcement layout.

Layer 1,3 (deg)

Orientation of layers 1 and 3 relative to the local x axis.

Layer 2,4 (deg)

Orientation of layers 2 and 4 relative to the local x axis.

A positive angle rotates the reinforcement in the right hand positive direction about the plate's local +z axis.

Common Controls

• Components
• Retrieve from model
• Keep selection
• Scale / Add / Delete / Apply

See Also

• LAYOUTS: Plate Concrete Reinforcement (RC)
• Special Topics: Plate RC
